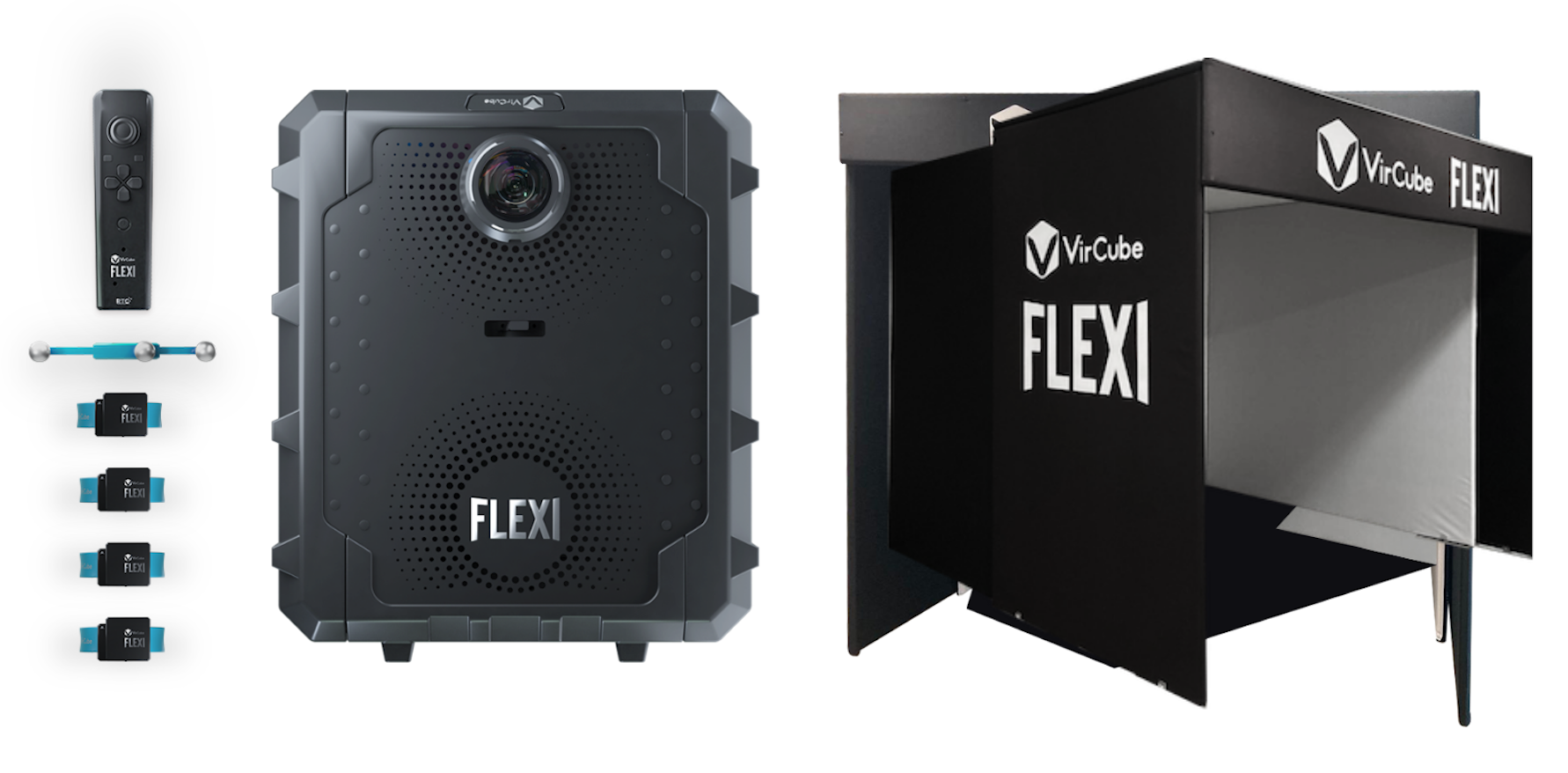

VirCube FLEXI

Technical
Specifications

General

Visual resolution: 3840 x 2160 pixels (4K)
Viewing side: 4-side
Visual FOV: 270 degree
Brightness: 5000 lumens
Color: HDR10 support
Contrast: 3,000,000: 1
Light source: Laser
Sound volume adjustment ring
Control: 7” FHD touch panel
2 USB 3.0 connection
2 LAN port connection (CAT6)
One button turn on
2 Wheel for movement
Carry Handle

Data Scanning

QR Code: QR, Data Matrix, PDF417, GS1 Databar,
Code 128/EAN128,UPC/EAN, Codabar, Code 39/Code 93
Range: 360°, incline ±65°, deflexion ±60°
Distance: 5.0-30.0cm,depend on QR Code size , Light Intensity
Resolution: 640x480 (CMOS)
Rate: 80ms
Protocol: Ultralight, MF1(S50,S70), DESFire EV1, NTag, NFC,
CPU, or ISO/IEC 14443A
Default as NFC & QR Code
Communications: Wiegand(Default), RS485,USB, TCP/IP
(Optional function)
Voltage: DC 12V(±5%)
Electricity: 260mA

Sound System

Visual resolution: 3840 x 2160 pixels (4K)
Viewing side: 4-side
Visual FOV: 270 degree
Brightness: 5000 lumens
Color: HDR10 support
Contrast: 3,000,000: 1
Light source: Laser
Sound volume adjustment ring
Control: 7” FHD touch panel
2 USB 3.0 connection
2 LAN port connection (CAT6)
One button turn on
2 Wheel for movement
Carry Handle

Core Performance

Lithography: 10 nm SuperFin
Total Cores: 4
Total Threads: 8
Max Turbo Frequency: 4.80 GHz
Cache: 12 MB Intel® Smart Cache
Bus Speed: 4 GT/s
Configurable TDP-up Base Frequency: 3.00 GHz
Configurable TDP-up: 28 W
Configurable TDP-down Base Frequency: 1.20 GHz
Configurable TDP-down: 12 W
RAM: 16GB DDR4-3200, LPDDR4x-4267
NVIDIA CUDA Cores: 4864
Boost Clock (GHz): 1.67
Memory Size: 8 GB
Memory Type : GDDR6
Storage: 1TB SSD

Tracking System

Resolution: 2048 × 2048
Native Frame Rate: 180 Hz
Latency: 5.5 ms
3D Accuracy: +/- 0.10 mm
Passive Markers: 30 m (100')
Default Speed: 0.25 ms
Minimum Speed: 0.01 ms
Maximum Speed: 4.0 ms at 250 fps
Image Processing Types: Raw Grayscale/ MJPEG Grayscale
LED Ring: 14 LEDs Ultra High Power 850 nm infrared
9DOF accelerometer, magnetometer, gyroscope
Gyroscope Standard full range: 2000 deg/s
In-run bias stability: 8 deg/h
Bandwidth (-3dB): 520 Hz
Accelerometer Standard full range: 10g
In-run bias stability: 10 (x,y) 15(z) µg
Magnetometer Standard full range: +/- 8 G
Total RMS noise: 1 mG
Non-linearity: 0.2%

Power

Power Cosumption: 700W
Supply: 220V

Network

802.11ac Wi-Fi wireless networking
IEEE 802.11a/b/g/n compatible
Bluetooth 5.0 wireless technology

Dimension

58.5cm x 48.5cm x 24cm

Weight

Approx.: 21kg

System

VirCube Flexi 1.0
3 Size selection
Size and position projection adjustment
Language: English/ Traditional Chinese/ Simplify Chinese
Turning off button
Perspective fix/ tracking
Screen transfer
Folder allocationa and netvigation
QR code tracker matching
Personal data collection
Pre-set character face and customs made chracter face
Character face on/off

Content Compatible

At least 60 3D made simulated training scenarios are embodied
in the console, such as:
Career orientation
IADLs training
Reminiscent therapy
Physical training
Cognitive training
Behavioural management
Emotional relaxation
Reality orientation
Hand-eye coordination
All compatible with hacptic feedback function

Controller

Wireless: 2.4GHz ISM band freqency hopping
Buttons: 10 (9 action, 1 Function)
Weight: 115g

In The Box

VirCube FLEXI
4 FLEXI Tracker
1 Controller
1 Eye Tracker
1 Power cable
1 wireless keyboard
1 wireless mouse
1 Portable screen (Size for selection)
